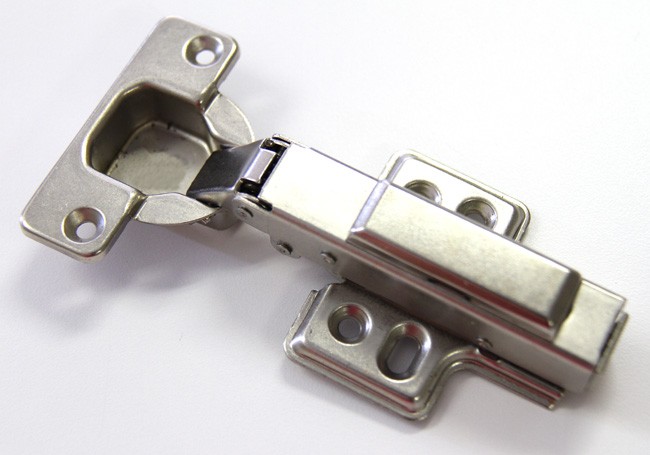

European Cabinet Concealed Hydraulic Soft Close Full Overlay Hinge


Regular Price: $15.00

Special Price $5.85

In stock, Usually Ship Within 1-2 Business Days

European Cabinet Concealed Hydraulic Soft Close Full Overlay Hinge for Frameless Cabinets with Full Overlay Doors. 110 Degree Opening. 35mm Cup Size. Reinforce supporting arms. Clip On Mounting Plate Included.

Questions or Phone Order? Call 888-988-8780


TCS Home Supplies Cabinet Hardware

Product Description

  • Long arm European style cabinet hinge.

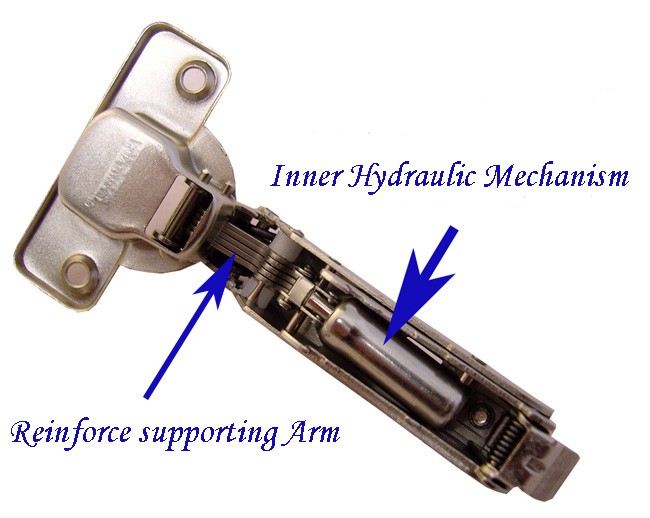

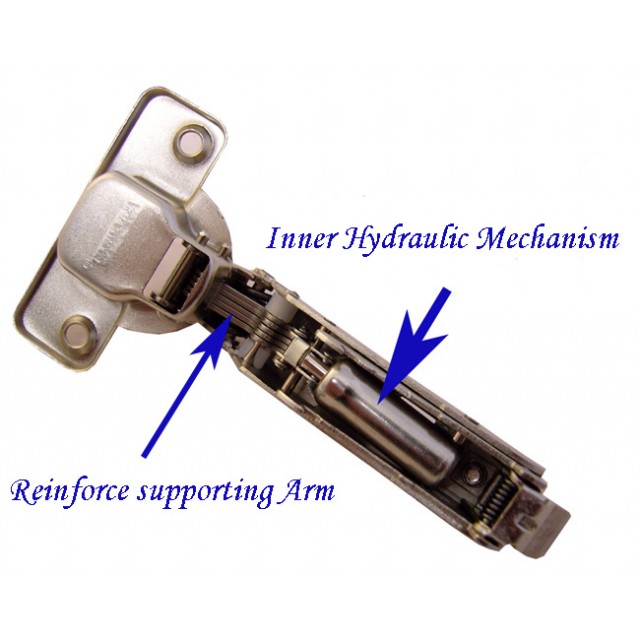

  • Hydraulic Soft Close Silent System is built into the hinge, cabinet door will close slowly even you slam the door!
  • Reinforce supporting Arms.
  • Made for 3/4" door and side panel.
  • Hinge opens 110 degrees and features full adjustability after installation.
  • Hinge fits into a "cup" drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8").
  • For cabinets with full overlay doors and no face frame (frameless cabinet).
  • Hinge is made from steel and is nickel plated.
  • Four screw holes provide more secure installation on the cabinet.

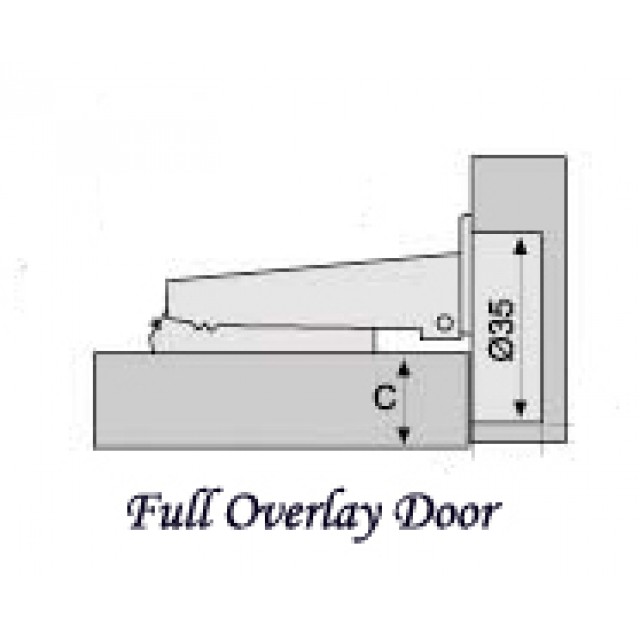

  • For full overlay doors. Will accomodate overlays from 5/8" to 3/4" (16 to 19mm). Overlay is determined by bore distance used.
  • Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.

Additional Information

Model WCH-A016
Cup Size 35mm
Hinge Closing Soft Closing
Hinge Installation Overlay
Hinge Application Frameless Cabinet
Opening Degree 110 Degree
Adjustment 4-Way Adjustable
Finish / Color Brushed Nickel
Material Steel
Brand TCS Home Supplies
Includes Cabinet Hinge, Clip-on Mounting Plate, Mounting Screws
