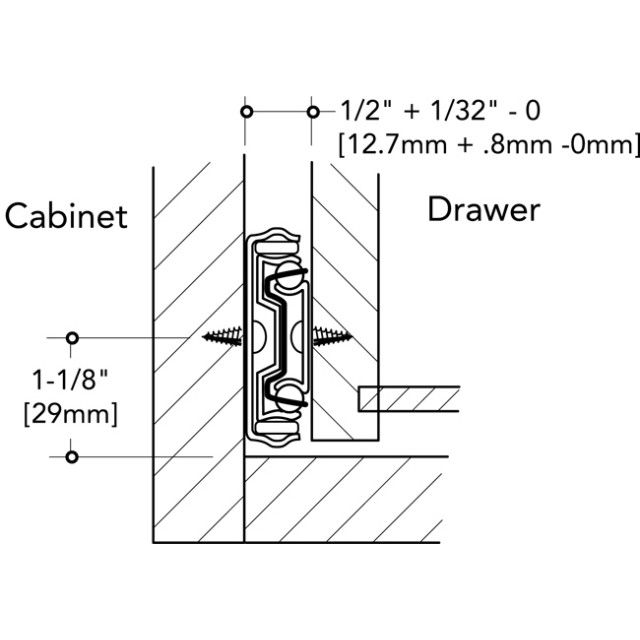

- Side mounted
- High performance precision chassis design
- Quad ball bearing and triple slide construction produce outstanding full extension performance
- Adjustable side space tabs
- Non handed design and 32mm hole pattern for easy installation
- Lever disconnect for easy drawer removal
- Detent in (hold closed)
- Limited lifetime warranty

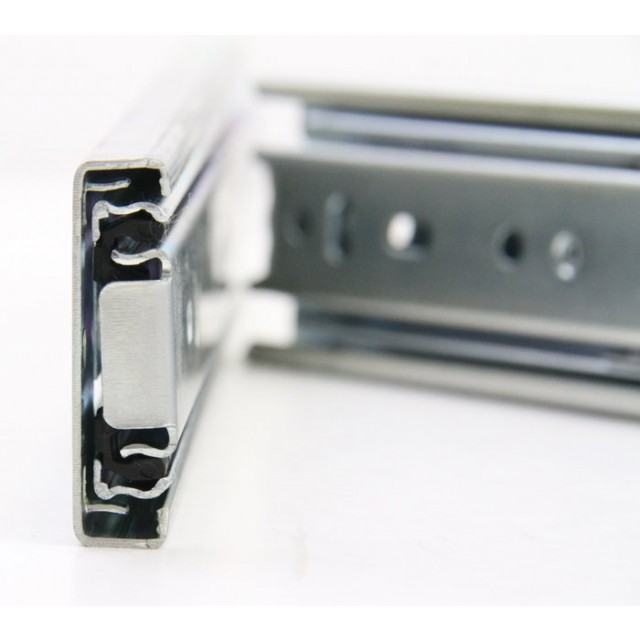

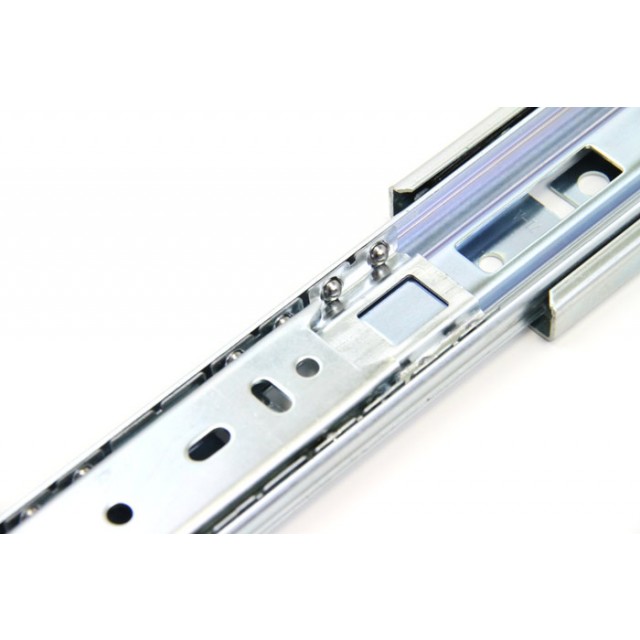

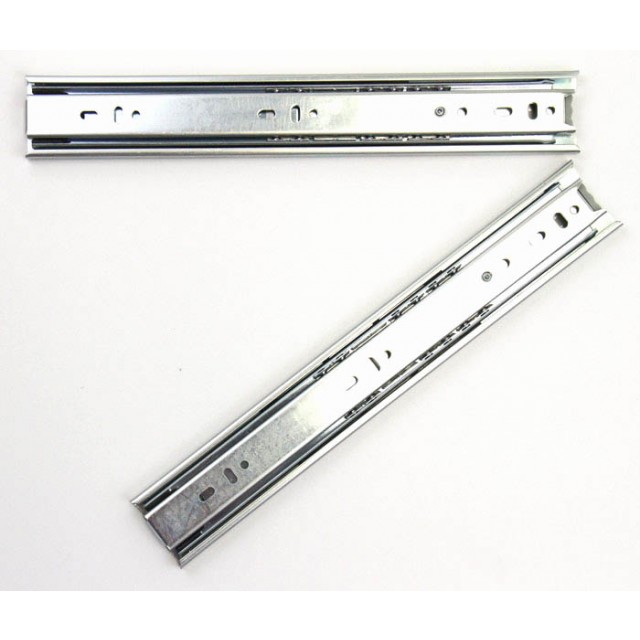

The 167 series is a high quality, side mounted ball bearing drawer slide. By employing a quad ball bearing structure incorporated into a triple slide design they produces ultra-smooth and silent movement throughout its range of motion. They are highly appreciated by cabinet and furniture manufacturers for it's quality and strength.
|Model||167 Series WCDS14|
|Length (Fully Extended)||28"|
|Load Capacity||100 LBS|
|With Soft Close||NO|
|Application||Framed / Frameless Cabinetry|
|Finish / Color||Satin Nickel|
|Brand||TCS Home Supplies|
|Includes||One Pair of Drawer Slide|
