European Cabinet Concealed Self Close Inset Hinge

European Cabinet Concealed Self Close Inset Hinge <ul class="disc"> <li>Long arm European style cabinet hinge.</li> <li>Made for 3/4" door and side panel.</li> <li>Hinge opens 110 degrees and features full adjustability after installation.</li> <li>Hinge fits into a "cup" drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8").</li> <li>For cabinets with full inset doors and no face frame (frameless cabinet).</li> <li>Hinge is made from steel and is nickel plated.</li> <li>Reveal: a 3mm bore distance (distance between the edge of the door and the edge of the 35mm cup drilled in the back of the door) will produce a reveal of 1mm. The reveal is the gap between the edge of the door and the cabinet side panel.</li> <li>Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.</li>
Click to enlarge

More Views

  • European Cabinet Concealed Self Close Inset Hinge
  • European Cabinet Concealed Self Close Inset Hinge
  • European Cabinet Concealed Self Close Inset Hinge

Quick Overview

European Cabinet Concealed Self Close Inset Hinge for Frameless Cabinets with Full Inset Doors. 110 Degree Opening. 35mm Cup Size. Clip On Mounting Plate Included.

SKU: WCH-A014

Be the first to review this product

Availability: In stock, usually ship within 1-2 business days.

Retail Price: $5.00

Our Price: $1.30

Add Items to Cart Add to Cart
Buy over $100 to receive FREE Shipping within the Continental US


Questions? Click here or call us at 888-988-8780



Product Description


  • Long arm European style cabinet hinge.

  • Made for 3/4" door and side panel.

  • Hinge opens 110 degrees and features full adjustability after installation.

  • Hinge fits into a "cup" drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8").

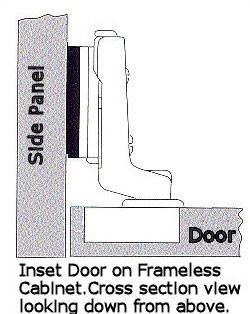

  • For cabinets with full inset doors and no face frame (frameless cabinet).

  • Hinge is made from steel and is nickel plated.

  • Reveal: a 3mm bore distance (distance between the edge of the door and the edge of the 35mm cup drilled in the back of the door) will produce a reveal of 1mm. The reveal is the gap between the edge of the door and the cabinet side panel.

  • Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.

Additional Information

Model WCH-A014
Finish / Color Brushed Nickel
Material Steel
Brand TCS Home Supplies
Hinge Closing Self Closing
Hinge Installation Inset
Hinge Application Frameless Cabinet
Opening Degree 110 Degree
Adjustment 4-Way Adjustable
Cup Size 35mm
Includes Cabinet Hinge, Clip-on Mounting Plate
