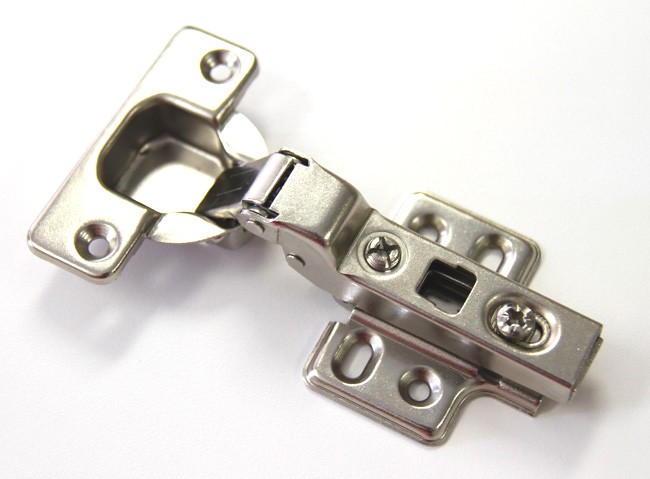

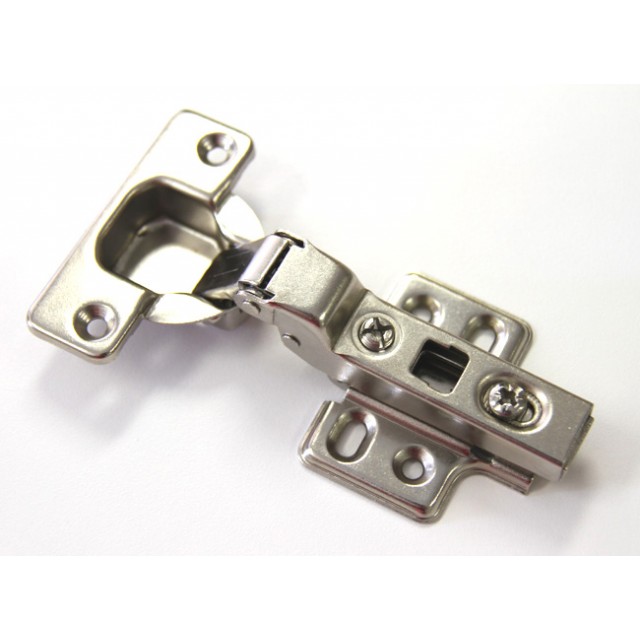

European Cabinet Concealed Self Close Half Overlay Hinge


Regular Price: $5.00

Special Price $1.30

In stock, Usually Ship Within 1-2 Business Days

European Cabinet Concealed Self Close Half Overlay Hinge for Frameless Cabinets with Half Overlay or Back-to-Back Doors. 110 Degree Opening. 35mm Cup Size. Clip On Mounting Plate Included.

Living the Dream Event is TODAY!
Save Extra 8% On This Item & EVERYTHING!
Order Now and Save Instantly On Top Our Already Low Prices!
Offer Expires Oct. 24th 11:59pm PST
Discount Will be Applied in Cart
Get Inspired for Your Dream Home & Save More Today!

Questions or Phone Order? Call 888-988-8780

TCS Home Supplies Cabinet Hardware

Product Description

  • Long arm European style cabinet hinge.
  • Made for 3/4" door and side panel.
  • Hinge opens 110 degrees and features full adjustability after installation.
  • Hinge fits into a "cup" drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8").
  • For cabinets with half overlay doors and no face frame (frameless cabinet).
  • Hinge is made from steel and is nickel plated.
  • Half overlay doors overlay less than 1/2 the thickness of the side panel that they are mounted to. Half overlay doors are also known as "Back to Back" doors. These doors are hinged to opposite sides of the same side panel. A typical installation for this hinge and mounting plate is an overlay of 8mm for each door. An 8mm overlay on a 3/4" side panel will leave a 3mm gap between the doors. The bore distance for an 8mm overlay is 4mm (bore distance is the distance from the edge of the door to the edge of the cup that is drilled in the back of the door).

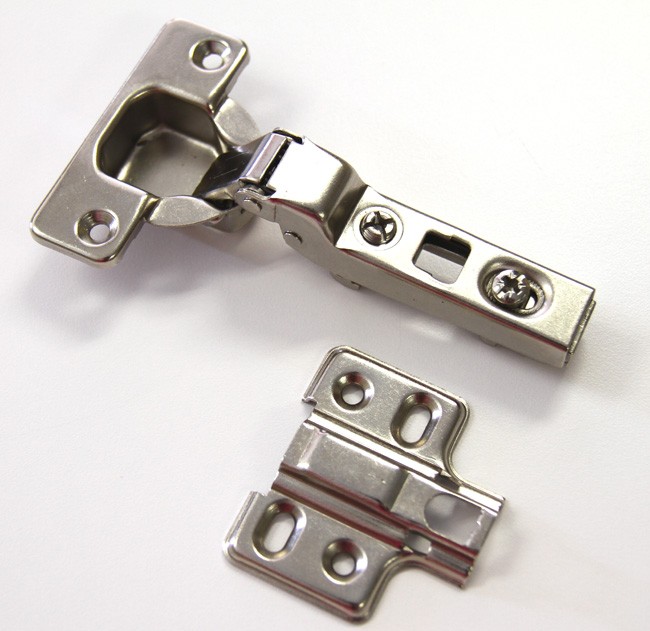

  • Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.

Additional Information

Model WCH-A012
Cup Size 35mm
Hinge Closing Self Closing
Hinge Installation Half Overlay
Hinge Application Frameless Cabinet
Opening Degree 110 Degree
Adjustment 4-Way Adjustable
Finish / Color Brushed Nickel
Material Steel
Brand TCS Home Supplies
Includes Cabinet Hinge, Clip-on Mounting Plate
