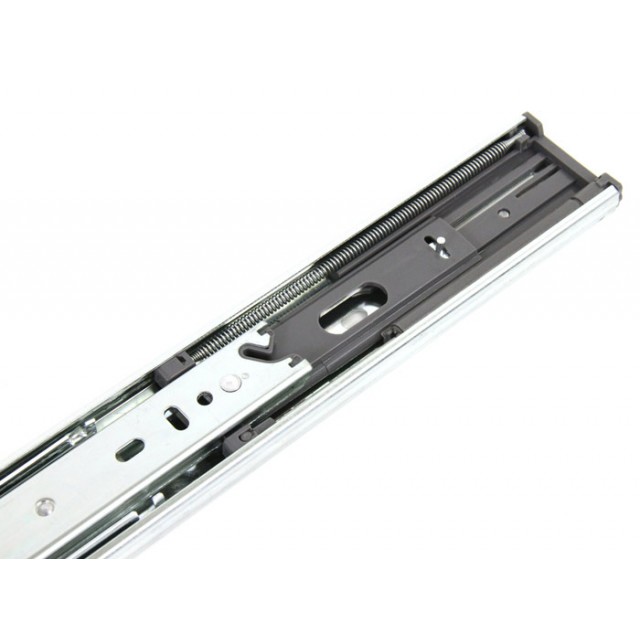

20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide

20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide<ul class="disc"> <li>Side mounted</li> <li>The soft close mechanism adds a concealed piston to Slowly draw the drawer smoothly and silently closed. Preventing drawers from slamming shut, stopping damages to drawers and keeping items from shifting within the drawers</li> <li>High performance precision chassis design</li> <li>Quad ball bearing and triple slide construction produce outstanding full extension performance</li> <li>Adjustable side space tabs</li> <li>The Easy-Close mechanism has an automatic reset with a stroke of about 1.5", in returns closing softly without slamming the drawer.</li> <li>Retro fit for your existing Cabinet.</li> <li>Optional mounting bracket can be added for face frame cabinets (framed cabinets).</li> <li>Non handed design and 32mm hole pattern for easy installation</li> <li>Lever disconnect for easy drawer removal</li> <li>Detent in (hold closed)</li> <li>Limited lifetime warranty</li> <p>The 167 series is a high quality, side mounted ball bearing drawer slide. By employing a quad ball bearing structure incorporated into a triple slide design they produces ultra-smooth and silent movement throughout its range of motion. They are highly appreciated by cabinet and furniture manufacturers for it's quality and strength.</p>
Click to enlarge

More Views

  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
  • 20 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide

Quick Overview

20" Hydraulic Soft Close Full Extension Ball Bearing Cabinet and Furniture Drawer Slide. Sold in Pairs. Side Mounted Installation. Triple Slide Construction. Automatic Close. Smooth and Quiet Movement.

SKU: WCDS20SC

Be the first to review this product

Availability: Out of stock.

Retail Price: $30.00

Our Price: $16.25

Buy over $100 to receive FREE Shipping within the Continental US


Questions? Click here or call us at 888-988-8780



Product Description


  • Side mounted

  • The soft close mechanism adds a concealed piston to Slowly draw the drawer smoothly and silently closed. Preventing drawers from slamming shut, stopping damages to drawers and keeping items from shifting within the drawers

  • High performance precision chassis design

  • Quad ball bearing and triple slide construction produce outstanding full extension performance

  • Adjustable side space tabs

  • The Easy-Close mechanism has an automatic reset with a stroke of about 1.5", in returns closing softly without slamming the drawer.

  • Retro fit for your existing Cabinet.

  • Optional mounting bracket can be added for face frame cabinets (framed cabinets).

  • Non handed design and 32mm hole pattern for easy installation

  • Lever disconnect for easy drawer removal

  • Detent in (hold closed)

  • Limited lifetime warranty

    • The 167 series is a high quality, side mounted ball bearing drawer slide. By employing a quad ball bearing structure incorporated into a triple slide design they produces ultra-smooth and silent movement throughout its range of motion. They are highly appreciated by cabinet and furniture manufacturers for it's quality and strength.

Additional Information

Model 167 Series WCDS20SC
Brand TCS Home Supplies
Length 20"
Length (Fully Extended) 40"
Load Capacity 100 LBS
With Soft Close YES
Application Framed / Frameless Cabinetry
Installation Side Mounted
Finish / Color Satin Nickel
Material Solid Zinc
Includes One Pair of Drawer Slide
