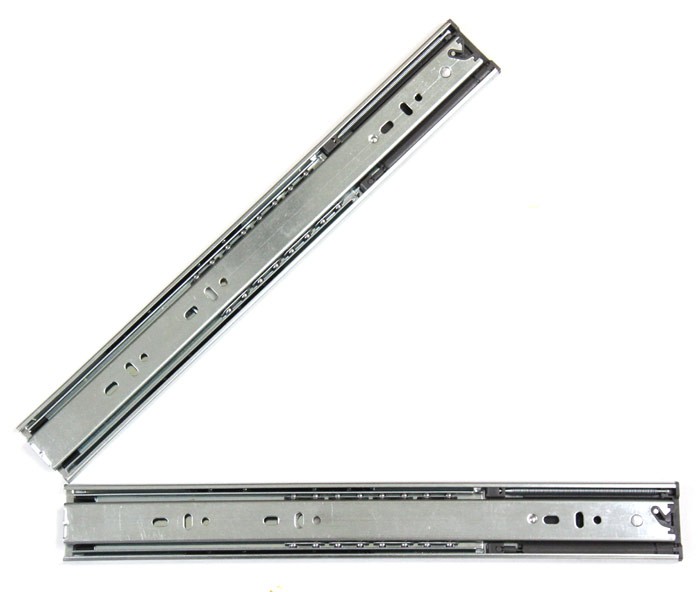

16 Inch Hydraulic Soft Close Full Extension Ball Bearing Drawer Slide
Regular Price: $23.00
Special Price $13.60
In stock, Usually Ship Within 1-2 Business Days
Product Description
- Side mounted
- The soft close mechanism adds a concealed piston to Slowly draw the drawer smoothly and silently closed. Preventing drawers from slamming shut, stopping damages to drawers and keeping items from shifting within the drawers
- High performance precision chassis design
- Quad ball bearing and triple slide construction produce outstanding full extension performance
- Adjustable side space tabs
- The Easy-Close mechanism has an automatic reset with a stroke of about 1.5", in returns closing softly without slamming the drawer.
- Retro fit for your existing Cabinet.

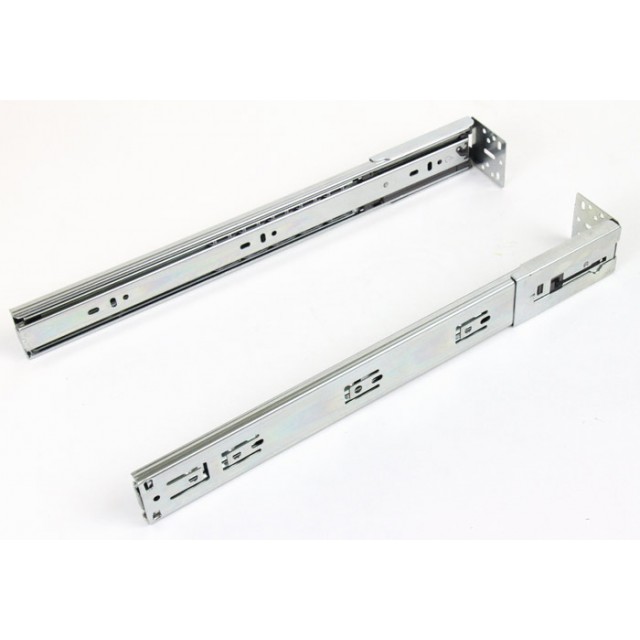

- Optional mounting bracket can be added for face frame cabinets (framed cabinets).
- Non handed design and 32mm hole pattern for easy installation
- Lever disconnect for easy drawer removal
- Detent in (hold closed)
- Limited lifetime warranty
The 167 series is a high quality, side mounted ball bearing drawer slide. By employing a quad ball bearing structure incorporated into a triple slide design they produces ultra-smooth and silent movement throughout its range of motion. They are highly appreciated by cabinet and furniture manufacturers for it's quality and strength.
Additional Information
SKU | WCDS16SC |
---|---|
Model | 167 Series WCDS16SC |
Length | 16" |
Length (Fully Extended) | 32" |
Load Capacity | 100 LBS |
With Soft Close | YES |
Application | Framed / Frameless Cabinetry |
Installation | Side Mounted |
Finish / Color | Satin Nickel |
Material | Solid Zinc |
Brand | TCS Home Supplies |
Includes | One Pair of Drawer Slide |
